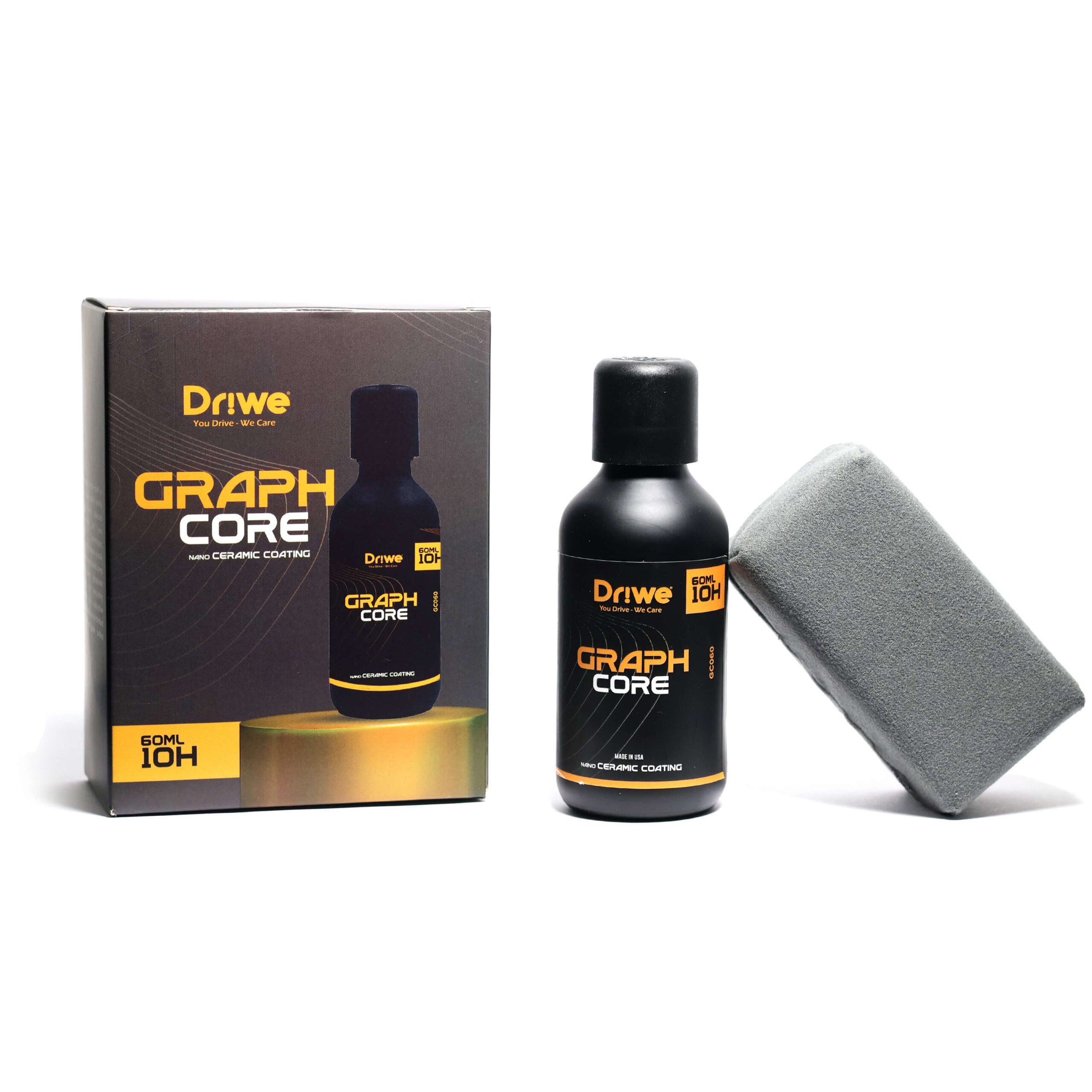

Graph Core - Nano Ceramic Coating
Driwe Graph Core is a clear, nano-crystalline, graphene-oxide modified ceramic coating that protects automobile exterior surfaces from weather, chemicals, physical abrasion and UV rays while repelling water, dirt and other contaminants via a self-cleaning effect. Driwe Graph Core applies an ultra hard, inert, durable coating film that is up to several microns thick and imparts a deep, reflective shine. Driwe Graph Core, like Envoz Mirror Glow, is a workhorse coating that has been modified by graphene-oxide to have improved properties over a quartz coating.
Guarantee safe & secure checkout
Description
Driwe Graph Core is a clear, nano-crystalline, graphene-oxide modified ceramic coating that protects automobile exterior surfaces from weather, chemicals, physical abrasion and UV rays while repelling water, dirt and other contaminants via a self-cleaning effect. Driwe Graph Core applies an ultra hard, inert, durable coating film that is up to several microns thick and imparts a deep, reflective shine. Driwe Graph Core, like Envoz Mirror Glow, is a workhorse coating that has been modified by graphene-oxide to have improved properties over a quartz coating.
TECHNICAL SPECIFICATIONS
Flash Point: 45°C | 113°F
Specific Gravity: 0.94 g/cm3 @ 25°C
Hardness: >10H (ASTM D-3363)
Thickness: 4–5 micron | 4000–5000 nanometers
Adhesion: 5B – No Coating Loss (ASTM D-3359)
Temperature Resistance: 1200–1800°C | 2200–3300°F
Sliding Angle: 10–15°
Contact Angle: 110–118°
INSTRUCTIONS
- Shake well before use.
- Saturate a suede applicator or similar with numerous drops of material from the dripper bottle.
- Apply the coating to a 3 × 3 ft area using a cross-hatch pattern with slight overlap.
- Allow the coating to dwell for 3–4 minutes at ambient temperature.
- Remove excess product with a clean suede cloth or low-nap microfiber towel.
- Keep the coating away from water for 24 hours while curing. Remove any water immediately if contact occurs.
- Wait at least 1 hour between additional coats.
- Do not apply in direct sunlight or on a hot surface.
- Test on a small inconspicuous area first to determine cure time.
- For force curing: cure at 60°C for 40 minutes or use a portable short-to-medium wavelength infrared lamp for 10–15 minutes per section.
GENERAL INFO.
Cautions: Can cause eye irritation. Excessive inhalation may cause respiratory irritation. Ingestion can cause gastrointestinal irritation. Prolonged skin contact may cause slight irritation. Harmful if swallowed.
First Aid: If product comes in contact with eyes, flush with water for 15 minutes and call a physician if irritation persists. If inhaled, move to fresh air and call a physician if irritation persists. If ingested, do NOT induce vomiting; call a physician.
TRANSPORT
DOT: UN 1993, PG III
IMDG: 5L
IATA: 10L
